ect 100

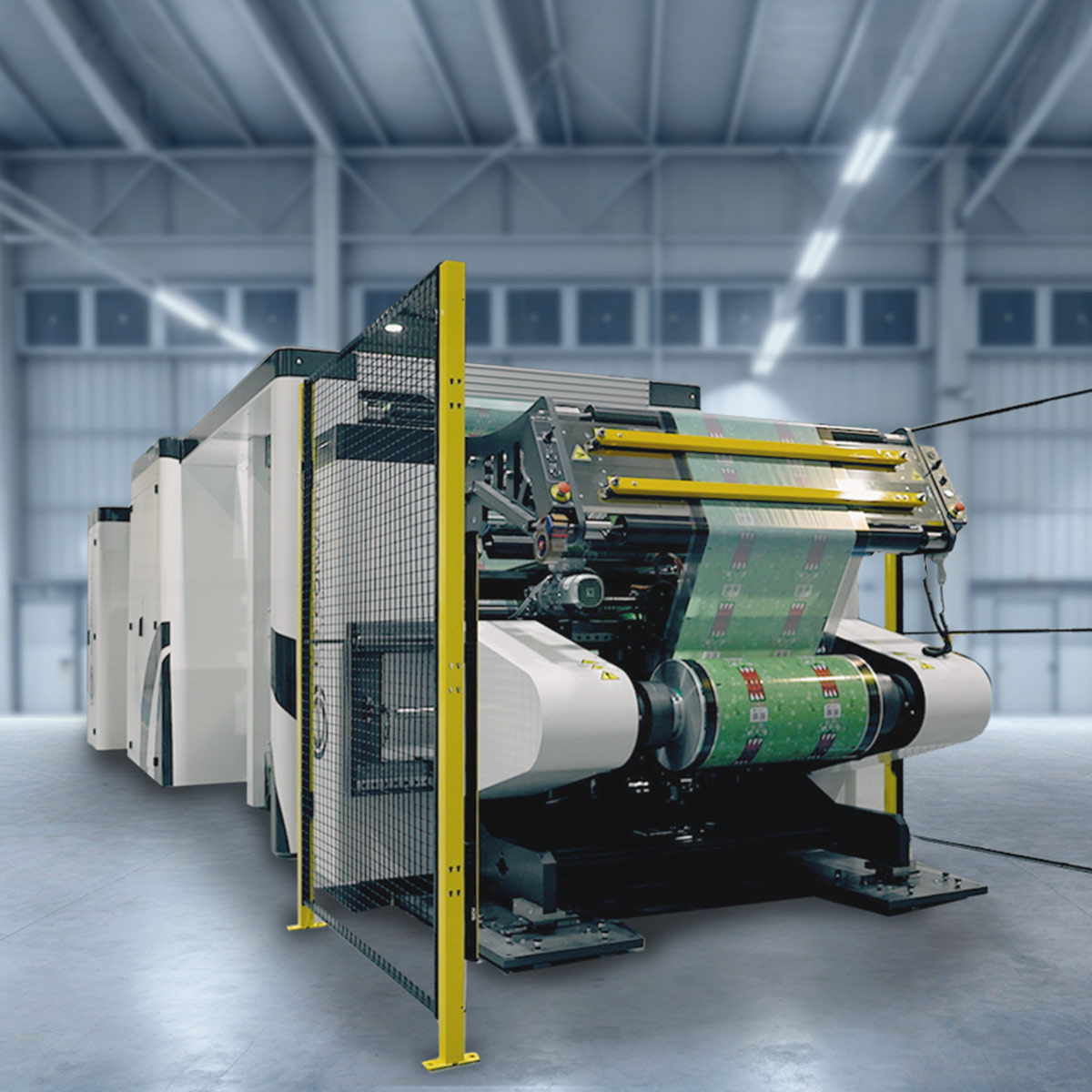

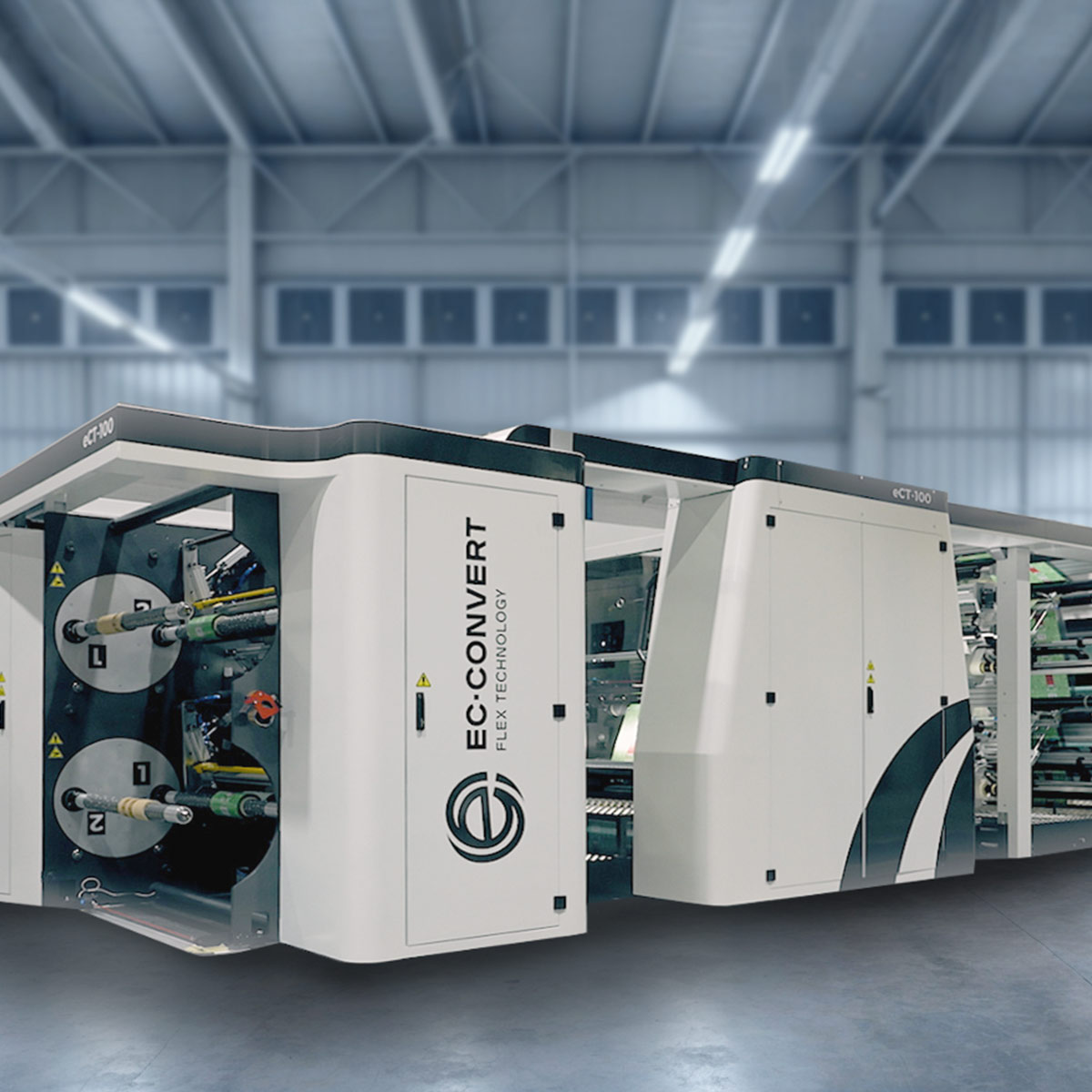

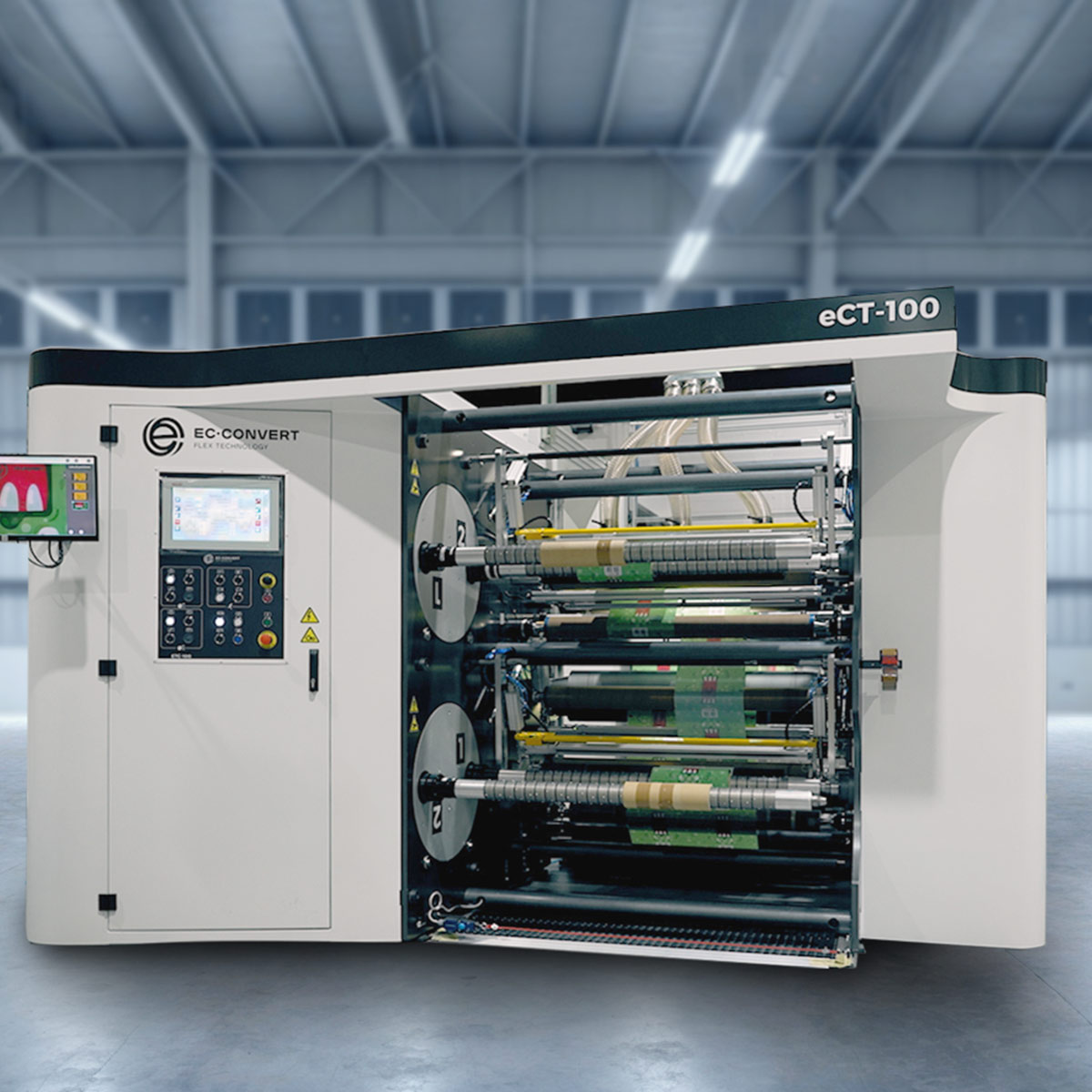

Double turret slitter rewinder with semi-rotary die cutter and label inserter
Process and technology
Unwinding, Web Guider, Dancing Group for Control Tension, Label Insertion, Semi-Rotary Die with Magnetic Cylinder at Register, Double Turret Slitter Rewinder, Technology 4.0.
Product
Easy open and Resealable Packaging.
Technical characteristics
Unwinder
- Maximum material width: 1000 mm (Optional: up to 1300 mm)
- Minimum material width: 400 mm
- Maximum roll diameter : 1000 mm
Label inserter
- Number of inserters: 4
- Wide format label: 30-250 mm
- Label position tolerance: +/- 1.5 mm
Semi-rotary die cutter
- Maximum material width: 970 mm
- Usable die-cut width: 950 mm
- Cylinder development: 1290 mm
- Gap: 0.48 mm
Longitudinal cutting
- Cutting type: Razor Blades
- Number of blades: 5 units
- Minimum cutting width: 40 mm
Double turret rewinder
- Type of shafts: Individual – frict
- Maximum roll diameter: 600 mm
- Web tension: 30 a 450 N
- Maximum mechanical speed (slitter rewinder): 450 m/min
- Maximum speed (die cutter): 80 – 140 m/min*
